Our mission is to improve the Ethiopian Health Care System by providing the very best in medical gas pipeline equipment technology and post installation services.

Founded in 2002 AAMED originally functioned as a third-party producer for one of the world's top leading medical gas pipeline manufacturers. During this time AAMED successfully manufactured a substantial amount of medical architectural equipment which today can be found in health care facilities across North and South America, the Middle East, Asia and Africa. Coincidently, while operating under the guidance and supervision of a well-established and experienced manufacturer AAMED was able to develop a deep and mature understanding of the regulatory standards that govern the production of medical gas products and related accessories.



In 2008 AAMED decided to rebrand its image and fully engaged itself in developing a strategy that will aid hospitals to streamline the procurement and planning process involved in the implementation of medical gas distribution systems. AAMED now proudly offers a complete turnkey solution to any health care facility wishing to construct, upgrade, or redesign, a new or preexisting medical gas pipeline. In direct partnership with Amico Corporation and EMGS AAMED has been able to continually offer a wide assortment of medical gas products and services to health care facilities worldwide.



Currently, AAMED has focused its resources in assisting African hospitals with less than favorable medical gas working conditions. When possible, AAMED’s assignment will be to promote and instill North American medical gas standards (NFPA 99 & CSA) where the need is most apparent.



Operating out of two locations (Toronto, Canada and Addis Ababa, Ethiopia) has allowed AAMED to maintain the integrity of its North American supply chain while fulfilling the need of the African market for an experienced post sales medical gas service provider.





Projects

St Paul Hospital Millenium Medical College | Addis Ababa, Ethiopia

Scope of Work:

Supply, Installation, Training, Testing, and Commissioning



Dual Medical Oxygen System & Cylinder Filling Plant

  • Oxygen Output:
  • 4000 scfh @ 45 psig (combined)
  • Cylinder Capacity: 100 cylinders per day (6m3 “K” size cylinders)

Medical Air System

  • Quadraplex Scroll Air Compressor System
  • Including Desiccant Dryer Package
  • With CO and Dew Point Monitors
  • Skid Mounted Stacking Configuration
  • 1060 Gallon Painted Vertical ASME Air Receiver
  • Quad Pro IEC Series Touch Screen Control Panel with Circuit Breaker Disconnects
  • 20 HP, 380V, 50 Hz, 3 Phase
  • Pump Capacity 64 CFM @ 120 PSIG
  • System Capacity 192 CFM @ 120 PSIG as per NFPA

Medical Vacuum System

  • Quadraplex Lubricated Rotary Vane Vacuum Pumps
  • Skid Mounted Stacking Configuration
  • 1060 Gallon Painted Vertical ASME Tank
  • Quadraplex Pro IEC Touch Screen Control Panel with Circuit Breaker Disconnects
  • 10 HP, 380 V, 50 Hz, 3 Phase
  • Pump Capacity 64.1 SCFM @ 19 in Hg
  • System Capacity 192.3 SCFM @ 19 in Hg as per NFPA

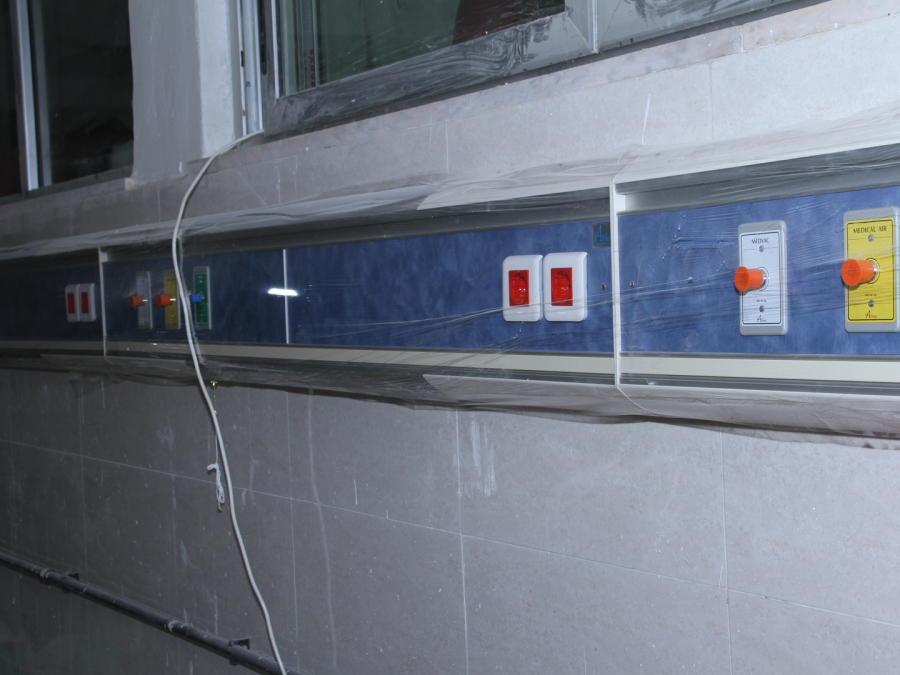

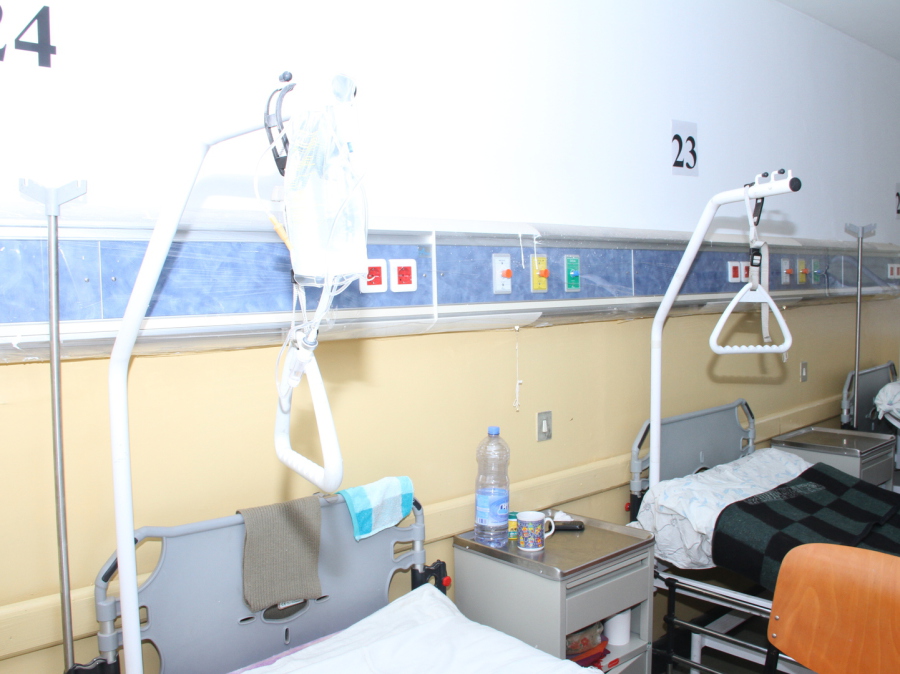

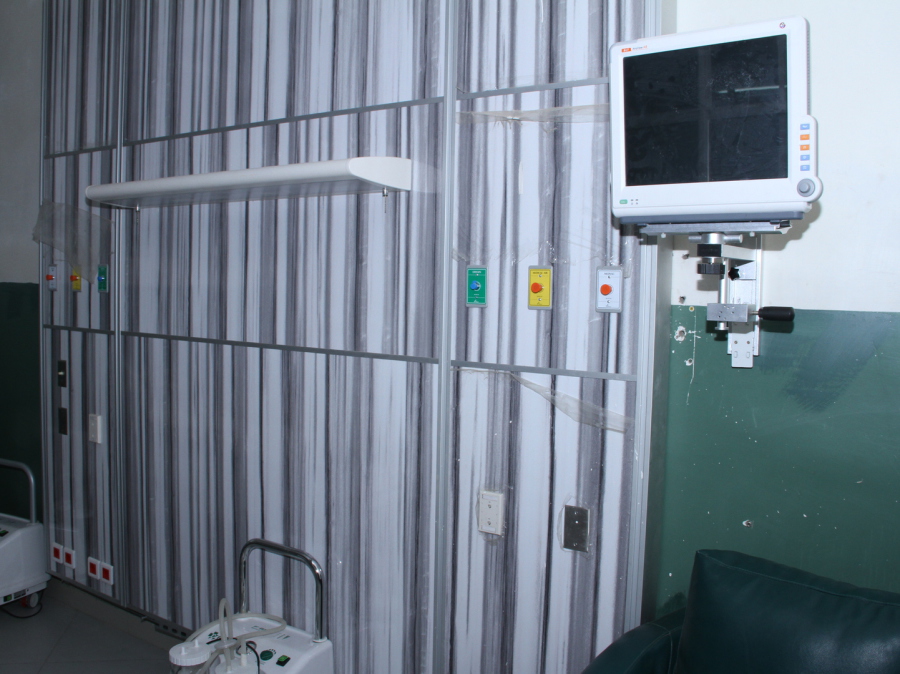

494 Patient Bed Medical Gas Pipeline & Headwall System

  • Oxygen Service
  • Medical Air Service
  • Vacuum Service
  • Electrical Outlets and Accessories
  • Alarm Systems, Area Alarm & Isolation Combo Units
  • Gas Manifold & Header Bar Systems



College of Medicine and Health Sciences, Bahir Dar University | Bahir Dar, Ethiopia

Scope of Work:

Supply, Installation, Training, Testing, and Commissioning



Dual Medical Oxygen System & Cylinder Filling Plant

  • Oxygen Output:
  • 6000 scfh @ 45 psig (combined)
  • Cylinder Capacity: 180 cylinders per day (6m3 “K” size cylinders)

Medical Air System

  • Nanoplex High Pressure Oil-less Scroll Air Compressor System
  • Including Desiccant Dryer Package
  • With CO and Dew Point Monitors
  • Skid Mounted Stacking Configuration
  • 200 Gallon Painted Vertical ASME Tank
  • 9-Plex Touch Screen Control Panel with Circuit Breaker Disconnects
  • 20 HP, 415 V, 50 Hz, 3 Phase
  • Compressor Capacity 49.8 CFM @ 100 PSIG
  • System Capacity 398.4 CFM @ 100 PSIG* (8) Duty, (1) Standby Compressor

Medical Vacuum System

  • Pentaplex Lubricated Rotary Vane Vacuum System
  • Skid Mounted Stacking Configuration
  • 240 Gallon Painted Vertical ASME Air Receiver
  • Pentaplex Pro IEC Series Premium HMI Touch Screen Control Panel
  • with Circuit Breaker Disconnects
  • 15 HP, 380 V, 50 Hz, 3 Phase
  • Pump Capacity 92.5 SCFM @ 19 in Hg
  • System capacity 370 SCFM @ 19 in Hg as per NFPA

Laboratory Air Compressor System

  • Duplex High Pressure Scroll Air Compressor System
  • with Duplex Desiccant Dryer Package
  • Including Dewpoint Monitor, No CO Monitor
  • Skid Mounted Stacking Configuration
  • 120 Gallon Painted Vertical ASME Air Receiver
  • Duplex Pro IEC Series Premium Touch Screen Control Panel
  • with Circuit Breaker Disconnects
  • 7.5 HP, 380 V, 50 Hz, 3 Phase
  • Compressor Capacity 15.5 CFM @ 145 PSIG
  • System Capacity 15.5 CFM @ 145 PSIG (1) Duty, (1) Reserve

575 Patient Bed Medical Gas Pipeline & Headwall System

  • Oxygen Service
  • Medical Air Service
  • Vacuum Service
  • Electrical Outlets and Accessories
  • Alarm Systems, Area Alarm & Isolation Combo Units
  • Gas Manifold & Header Bar Systems
  • Medical Gas Cylinders

250 m3/day newterra Membrane Bioreactor Wastewater Treatment System

  • System Enclosures - Five (5) 8’ X 40’ Building Modules
  • Lift Station - Two (2) Lift station pumps
  • Flow Equalization - One (1) Containerized equalization tank, One (1) air mixing blowers, Two (2) screen feed pumps
  • Fine Screening - One (1) fine screens, Discharge tank, Two (2) discharge pumps
  • Biological Treatment - Two (2) Containerized Aerobic tank, Two (2) aeration blowers, Two (2) membrane feed pumps, One (1) waste activated sludge (WAS) pump
  • Membrane Filtration - Two (2) Separate Membrane tank, One (1) permeate extraction pump (2 total), One (1) air scouring blowers (one for each membrane tank)
  • Liquid Phase Carbon - Two (2) 1000lb liquid phase carbon vessels
  • Ozone Treatment - Newterra ozone treatment system
  • UV Reactors
  • Alum Dosing
  • Caustic Dosing
  • Sludge Dewatering
  • Clean Water Storage
  • Control System Module

250 m3/day newterra Membrane Bioreactor Potable Water Treatment System

  • Greensand Module - Three (3) Greensand filters with backwash capability, Continuous regeneration
  • Reverse Osmosis Module - Two (2) Antiscalant dosing pumps, Two (2) Sodium metabisulfite dosing pumps, Static mixer, ORP transmitter, Conductivity transmitter, Cartridge filter 5 micron, Feed flow transmitter, Two (2) Booster pumps, Membrane pressure vessels, Recirculation line, Concentrate line, Permeate line, Blend/bypass line with manual valve
  • Chemical Addition Module - Two (2) Sodium hypochlorite pumps for disinfection
  • Distribution Pump - Three (3) distribution pumps
  • Potable Water Storage Tanks - Two (2) Potable water storage tanks
  • Air Compressor - One (1) Air Compressor
  • Clean in Place Module - Clean in place tank, Clean in place pump
  • System Enclosures - One (1) 40’ Modified Shipping Container, One (1) 20’ Modified Shipping Container
  • Control System Module

Kitchen Service Equipment

  • Goods Receiving, Garbage Area, Storage & Cold Rooms, Veg. Preparation, Fish Preparation, Meat Preparation, Hot Kitchen, Diet Kitchen, Cold Kitchen, Pot Wash, Dish Wash, Trolley Wash, Tray Set-Up

Laundry Service Equipment

  • ​Chemical Store, Dirty Side, Clean Side, Storage and Mending

Medical Waste Incinerator

  • Medical Incinerator – Oil Fired C/W Hydraulic Loading Door & Viewing Windows, 1000 Litre Fuel Tank & Piping, Heat Recovery System, Venturi Gas Scrubber, Semi-Automatic Loading System – Waste Tipper



University of Gondar | Gondar, Ethiopia

Scope of Work:

Supply, Installation, Training, Testing, and Commissioning



Dual Medical Oxygen System & Cylinder Filling Plant

  • Oxygen Output:
  • 6000 scfh @ 45 psig (combined)
  • Cylinder Capacity: 180 cylinders per day (6m3 “K” size cylinders)

Medical Air System

  • Nanoplex High Pressure Oil-less Scroll Air Compressor System
  • Including Desiccant Dryer Package
  • With CO and Dew Point Monitors
  • Skid Mounted Stacking Configuration
  • 200 Gallon Painted Vertical ASME Tank
  • 9-Plex Touch Screen Control Panel with Circuit Breaker Disconnects
  • 20 HP, 415 V, 50 Hz, 3 Phase
  • Compressor Capacity 49.8 CFM @ 100 PSIG
  • System Capacity 398.4 CFM @ 100 PSIG* (8) Duty, (1) Standby Compressor

Medical Vacuum System

  • Pentaplex Lubricated Rotary Vane Vacuum System
  • Skid Mounted Stacking Configuration
  • 240 Gallon Painted Vertical ASME Air Receiver
  • Pentaplex Pro IEC Series Premium HMI Touch Screen Control Panel
  • with Circuit Breaker Disconnects
  • 15 HP, 380 V, 50 Hz, 3 Phase
  • Pump Capacity 92.5 SCFM @ 19 in Hg
  • System capacity 370 SCFM @ 19 in Hg as per NFPA

Laboratory Air Compressor System

  • Duplex High Pressure Scroll Air Compressor System
  • with Duplex Desiccant Dryer Package
  • Including Dewpoint Monitor, No CO Monitor
  • Skid Mounted Stacking Configuration
  • 120 Gallon Painted Vertical ASME Air Receiver
  • Duplex Pro IEC Series Premium Touch Screen Control Panel
  • with Circuit Breaker Disconnects
  • 7.5 HP, 380 V, 50 Hz, 3 Phase
  • Compressor Capacity 15.5 CFM @ 145 PSIG
  • System Capacity 15.5 CFM @ 145 PSIG (1) Duty, (1) Reserve

575 Patient Bed Medical Gas Pipeline & Headwall System

  • Oxygen Service
  • Medical Air Service
  • Vacuum Service
  • Electrical Outlets and Accessories
  • Alarm Systems, Area Alarm & Isolation Combo Units
  • Gas Manifold & Header Bar Systems
  • Medical Gas Cylinders

250 m3/day newterra Membrane Bioreactor Wastewater Treatment System

  • System Enclosures - Five (5) 8’ X 40’ Building Modules
  • Lift Station - Two (2) Lift station pumps
  • Flow Equalization - One (1) Containerized equalization tank, One (1) air mixing blowers, Two (2) screen feed pumps
  • Fine Screening - One (1) fine screens, Discharge tank, Two (2) discharge pumps
  • Biological Treatment - Two (2) Containerized Aerobic tank, Two (2) aeration blowers, Two (2) membrane feed pumps, One (1) waste activated sludge (WAS) pump
  • Membrane Filtration - Two (2) Separate Membrane tank, One (1) permeate extraction pump (2 total), One (1) air scouring blowers (one for each membrane tank)
  • Liquid Phase Carbon - Two (2) 1000lb liquid phase carbon vessels
  • Ozone Treatment - Newterra ozone treatment system
  • UV Reactors
  • Alum Dosing
  • Caustic Dosing
  • Sludge Dewatering
  • Clean Water Storage
  • Control System Module

250 m3/day newterra Membrane Bioreactor Potable Water Treatment System

  • Greensand Module - Three (3) Greensand filters with backwash capability, Continuous regeneration
  • Reverse Osmosis Module - Two (2) Antiscalant dosing pumps, Two (2) Sodium metabisulfite dosing pumps, Static mixer, ORP transmitter, Conductivity transmitter, Cartridge filter 5 micron, Feed flow transmitter, Two (2) Booster pumps, Membrane pressure vessels, Recirculation line, Concentrate line, Permeate line, Blend/bypass line with manual valve
  • Chemical Addition Module - Two (2) Sodium hypochlorite pumps for disinfection
  • Distribution Pump - Three (3) distribution pumps
  • Potable Water Storage Tanks - Two (2) Potable water storage tanks
  • Air Compressor - One (1) Air Compressor
  • Clean in Place Module - Clean in place tank, Clean in place pump
  • System Enclosures - One (1) 40’ Modified Shipping Container, One (1) 20’ Modified Shipping Container
  • Control System Module

Kitchen Service Equipment

  • Goods Receiving, Garbage Area, Storage & Cold Rooms, Veg. Preparation, Fish Preparation, Meat Preparation, Hot Kitchen, Diet Kitchen, Cold Kitchen, Pot Wash, Dish Wash, Trolley Wash, Tray Set-Up

Laundry Service Equipment

  • ​Chemical Store, Dirty Side, Clean Side, Storage and Mending

Medical Waste Incinerator

  • Medical Incinerator – Oil Fired C/W Hydraulic Loading Door & Viewing Windows, 1000 Litre Fuel Tank & Piping, Heat Recovery System, Venturi Gas Scrubber, Semi-Automatic Loading System – Waste Tipper



Armed Force Referral Hospital |Bishoftu (Debre Zeyit) Ethiopia

Scope of Work:

Supply, Installation, Training, Testing, and Commissioning



Medical Oxygen Generating System

  • Oxygen Output:
  • 4000 scfh @ 45 psig (combined)
  • 113.2 Nm3/hr @ 310 kPa (combined)
  • Cylinder Capacity: 50 cylinders per day (6m3 “K” size cylinders)

Medical Air Generating Plant

  • Quadraplex Scroll Air Compressor System
  • Including Desiccant Dryer Package
  • With CO and Dew Point Monitors
  • Skid Mounted Stacking Configuration
  • 1060 Gallon Painted Vertical ASME Air Receiver
  • Quadraplex Control Panel with Circuit Breaker Disconnects
  • 20 HP, 380V, 50 Hz, 3 Phase
  • Compressor Capacity 16.1 CFM @ 100 PSIG
  • System Capacity 48.3 CFM @ 100 PSIG as per NFPA

Medical Vacuum Plant

  • Quadraplex Lubricated Rotary Vane Vacuum Pumps
  • Skid Mounted Stacking Configuration
  • 1060 Gallon Painted Vertical ASME Tank
  • Quadraplex Control Panel with Circuit Breaker Disconnects
  • 10 HP, 380 V, 50 Hz, 3 Phase
  • Pump Capacity 64.1 SCFM @ 19 in Hg
  • System Capacity 192.3 SCFM @ 19 in Hg as per NFPA

403 Patient Bed Medical Gas Pipeline & Headwall System

  • Oxygen Service
  • Medical Air Service
  • Vacuum Service
  • Nitrous Oxide
  • Electrical Outlets and Accessories
  • Alarm Systems, Area Alarm & Isolation Combo Units
  • Gas Manifold & Header Bar Systems

150 m3/day newterra Membrane Bioreactor Wastewater Treatment System

  • System Enclosures - Four (4) 8’ X 40’ Building Modules
  • Lift Station - Two (2) Lift station pumps
  • Flow Equalization - One (1) Containerized equalization tank, Five (5) air mixing blowers, Two (2) screen feed pumps
  • Fine Screening - One (1) fine screens, Discharge tank, Two (2) discharge pumps
  • Biological Treatment - One (1) Containerized Aerobic tank, One (1) aeration blowers, Two (2) membrane feed pumps, One (1) waste activated sludge (WAS) pump
  • Membrane Filtration - Separate Membrane tank, One (1) MicroClearTM MB2-3 submerged membrane modules, Permeate extraction header, One (1) permeate extraction pumps, CIP System (common for both tanks), One (1) air scouring blowers
  • Liquid Phase Carbon - Two (2) 1000lb liquid phase carbon vessels
  • UV Reactors
  • Alum Dosing
  • Caustic Dosing
  • Sludge Dewatering
  • Control System Module
