NFPA DRY ROTARY VANE

NFPA Duplex RVD Horizontal Tank Mount

The duplex horizontal tank mount dry rotary vane pumps provide footprint reduction and enhance the overall serviceability by means of compact design. Relative to the space saver configuration, the horizontal tank mount is capable of accommodating bigger pumps and accessories. Mounted horizontally on top of the receiver tank, this configuration is available for pumps ranging between 1.2 – 7.5 HP, offering you maximum space efficiency.

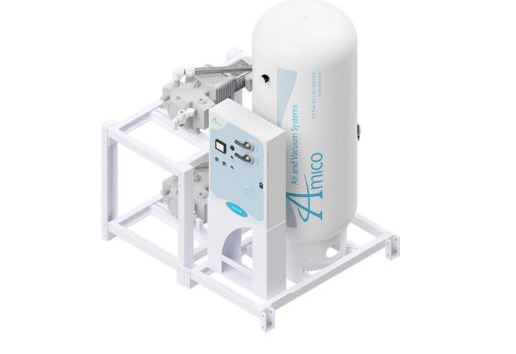

NFPA Duplex RVD Modular Stack Mount

The duplex modular stacking configuration minimizes installation cost and maximizes the availability of floor space. The duplex modular stack mount configuration consists of two pumps stacked on top of one another. This modular or field separable design allows for ease of shipment and handling on site.

NFPA Duplex RVD Vertical Tank Mount

Available for vacuums ranging between 1.2 to 7.5 HP, the vertical tank mount configuration minimizes installation cost and maximizes the availability of floor space. The duplex vertical tank mount configuration consists of two pumps mounted on top of the receiver tank.

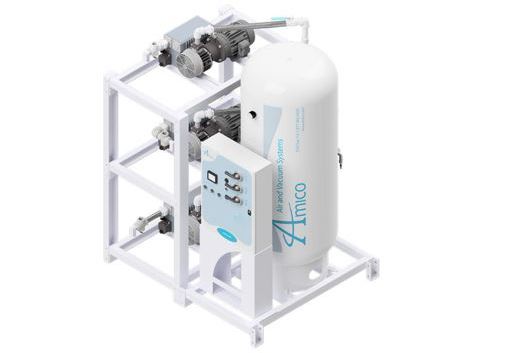

NFPA Triplex RVD Modular Stack Mount

The triplex modular stacking configuration consists of two vacuum pumps stacked on one side and one vacuum situated on the other side of the receiver tank. For certain sizes, stacking three vacuums vertically on one side is also possible. This modular or field separable design allows for ease of shipment and handling on site.

NFPA Quadruplex RVD Modular Stack Mount

The quadruplex modular stacking configuration consists of two vacuum pumps mounted on top of one another on both sides of the receiver tank. This modular or field separable design allows for ease of shipment and handling on site.

General Specifications



Control Panel



UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display

Manual reset for all alarms

All control and alarm functions shall remain energized while any pump in the system remains electrically online

Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters

Lag pump will start automatically should the lead pump fail to operate

Vacuum Pump



Oil-less Rotary Vane type and operates completely dry with air cooled design

Equipped with self-lubricating carbon or graphite vanes with no water requirements

Permanently lubricated and sealed

Equipped with a built-in anti-suck back valve mounted at the pump inlet

Direct driven through a shaft coupling by a NEMA C-face, TEFC electric motor

Means of removal of the vacuum pump for service or replacement without interruption to the system

Air Receiver



ASME certified with provisions for isolating the receiver without interruption of the vacuum service

Rated for full vacuum service with a minimum 200 psig design pressure

Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

NFPA Quadruplex RVD Modular Stack Mount
Spec Sheet RVD.pdf
Adobe Acrobat document [465.9 KB]
