NFPA CONTACT-LESS CLAW

NFPA Duplex CCD Horizontal Tank Mount

The duplex horizontal tank mount contact-less claw allows footprint reduction and enhances the overall serviceability by means of its compact design. Relative to the space saver configuration, the horizontal tank mount is capable of accommodating larger sized pumps and accessories. Positioned horizontally on top of the receiver tank, this configuration is available for pumps ranging between 3 - 8.7 HP, offering you maximum space efficiency.

NFPA Duplex CCD Modular Stack Mount

The duplex modular stacking configuration minimizes installation cost and maximizes the availability of floor space. This configuration consists of two pumps stacked on top of one another. This modular or field separable design allows for ease of shipment and handling on site.

NFPA Duplex CCD Vertical Tank Mount

Available for vacuum pumps between 2 to 5 HP, the vertical tank mount configuration minimizes installation costs and maximizes the availability of floor space. The duplex vertical tank mount configuration consists of two pumps mounted on top of the receiver tank.

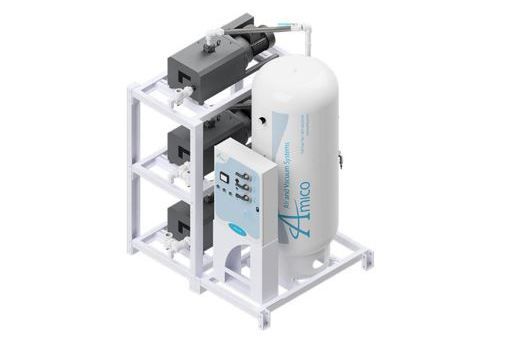

NFPA Triplex CCD Modular Stack Mount

The triplex modular stacking configuration allows two vacuum pumps to be stacked on one side and one vacuum pump situated on the other side of the receiver tank. For certain sizes, stacking three vacuums vertically on one side is also possible. This modular or field separable design allows for ease of shipment and handling on site.

NFPA Quadruplex CCD Modular Stack Mount

The quadruplex modular stacking configuration consists of two vacuum pumps mounted on top of one another on both sides of the receiver tank. This modular or field separable design allows for ease of shipment and handling on site.

General Specifications



Control Panel



UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display

Manual reset for all alarms

All control and alarm functions shall remain energized while any pump in the system remains electrically online

Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters

Lag pump will start automatically should the lead pump fail to operate

Vacuum Pump



Continuous duty, high efficiency, oil-less and friction-less compression Contact-Less Claw type

Pumping chamber is oil free

Pump is air cooled with no water requirements

Claws are synchronized by heavy-duty precision timing gears

Built-in anti-suck back valve mounted at the pump inlet

Means of removal of the vacuum pump for service or replacement without interruption to the service

Air Receiver



ASME certified with provisions for isolating the receiver without interruption of the vacuum service

Rated for full vacuum service with a minimum 200 psig design pressure

Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing

NFPA Contact-less Claw
Spec Sheet CCD.pdf
Adobe Acrobat document [469.0 KB]
