ZONE INDICATOR PANELS

Sensor Indicator Panel Combo Unit



Sensor Indicator Panel Combo units easily access the alarm sensors right in the Zone Indicator Panel. By adding a provision port for Area Alarm sensors, time and money are saved during installation, maintenance and inspection.





Sensor Indicator Panel Combo Unit NFPA
Spec Sheet SIPCU NFPA.pdf
Adobe Acrobat document [442.6 KB]
Sensor Indicator Panel Combo Unit CSA
Spec Sheet SIPCU CSA.pdf
Adobe Acrobat document [466.0 KB]

Single Sensor Indicator Panel Combo Unit



Each recessed zone indicator panel box shall consist of the following components: A steel box which can house one zone shut-off with tube extensions, an aluminum frame and a pull-out removable window. Gauge options are 100 psi, 300 psi or 30 inHg. The terminal strips are provided with the box. The sensors and DISS fittings are gas specific and provided with the alarm.





Single Sensor Indicator Panel Combo Unit NFPA
Spec Sheet SSIPCU NFPA.pdf
Adobe Acrobat document [624.5 KB]
Single Sensor Indicator Panel Combo Unit CSA
Spec Sheet SSIPCU CSA.pdf
Adobe Acrobat document [624.9 KB]

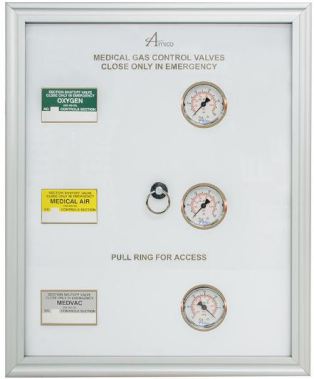

Multiple Zone Indicator Panel Assembly



The zone shut-offs shall be 3 piece, ball-type design with a brass forging body and a chrome plated, brass ball for sizes 1/2" to 2". Ball seats, stem seals and stem washer shall be reinforced Teflon (PTFE), with Viton stem and flange O-rings. A blow-out proof stem shall be used and the zone shut-off shall have a maximum pressure rating of 600 psi (4,137 kPa). All zone shut-offs materials shall be compatible with medical gases or vacuum service to 29" Hg (98.205 kPa).





Multiple Zone Indicator Panel Assembly NFPA
Spec Sheet MZIPB NFPA.pdf
Adobe Acrobat document [367.7 KB]
Multiple Zone Indicator Panel Assembly CSA
Spec Sheet MZIPB CSA.pdf
Adobe Acrobat document [372.8 KB]

Single Zone Indicator Panel Assembly



The zone shut-offs shall be 3 piece, ball-type design with a brass forging body and a chrome plated, brass ball for sizes 1/2" to 2". Ball seats, stem seals and stem washer shall be reinforced Teflon (PTFE), with Viton stem and flange O-rings. A blow-out proof stem shall be used and the zone shut-off shall have a maximum pressure rating of 600 psi (4,137 kPa). All zone shut-offs materials shall be compatible with medical gases or vacuum service to 29" Hg (98.205 kPa).





Single Zone Indicator Panel Assembly NFPA
Spec Sheet SZIPB NFPA.pdf
Adobe Acrobat document [469.8 KB]
Single Zone Indicator Panel Assembly CSA
Spec Sheet SZIPB CSA.pdf
Adobe Acrobat document [468.4 KB]

Security Zone Indicator Panel



All pipe stub extensions shall be supplied with suitable plugs or caps to prevent contamination of the assembly prior to installation. Each valve shall be supplied with an identification bracket which shall be bolted directly onto the valve box for the purpose of applying an approved medical gas identification label. A package of labels shall be supplied with each valve box assembly for application by the installer. Amico products comply with NFPA-99.



Security Zone Indicator Panel NFPA
Spec Sheet SZIP NFPA.pdf
Adobe Acrobat document [395.8 KB]
Security Zone Indicator Panel CSA
Spec Sheet SZIP CSA.pdf
Adobe Acrobat document [395.8 KB]
